Formwork Dywidag Shuttering Concrete Forming Steel Tie Rods

Quantity:
  • SF13
  • SHILUOMEI
  • SF13
  • Shandong, China (Mainland)
  • SHILUOMEI
  • steel Q235
  • 1.5kg/m
  • 6m
  • Natural,EG,HDG

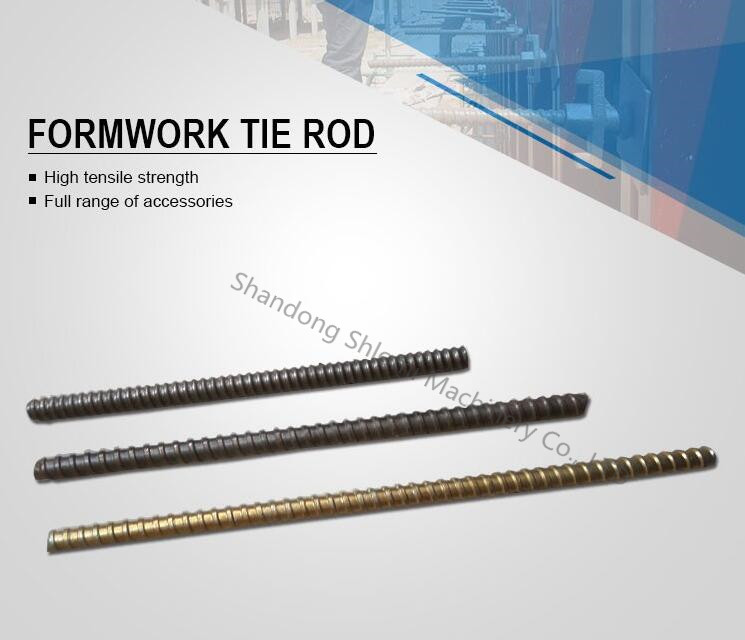

Formwork tie rod,  water stop tie rod ,wing nut tie rod,hex nut rod

Concrete Tie Rods is for concrete formwork and shuttering work in construction is used together with formwork accessories of concrete anchor nut, water stop, wing nut with base plate for conctete forming.

Scaffold produces concrete tie rod in 90KN, 140KN, 180KN, 190KN and 220KN according to loading capacity. Concrete tie rod and tie bar can be in black self finished or galvanized finished.

All tie rods and tie bars are conform to EN BS standard for safety construction from wellmade scaffold
Tie Rods length is various from 0.3m to 6mtr according to construction conrete and project requirement.

Concrete Tie rod is used for dywidag formwork with water stop, anchor tie nut, wing nut,steel cone formwork materials and accessories and form tie formwork system with form tie, flat rib washe for wood batters and pipe batters, r b cone and d cone and L cone in size of 12mm.


1. Material :   Q235 or 45# carbon steel

2. Surface treatment:  plain, electrogalvanized,HDG

3. Color:   Plain, galvanized color

4. Size :    21/23mm, 20/22mm,15/17mm,12*4mm etc

5. Length:1-6m

6. Break Load :60-145KN

7. For concrete formwork buliding

8. OEM is avaliable
image(6)image(7)image(5)

We can MANUFACTURE  formwork and scaffold parts and prop parts with high quality lower price

1. we are factory

3. Exported each year

4. Customers from more than 30 Countries

5. Stable Quality

6. Lower price than the market

7. Responsible service
